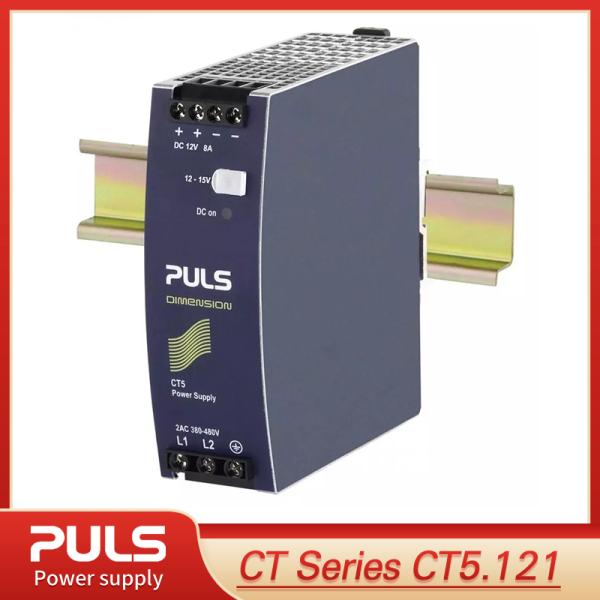

Brand Name: PULS
Model Number: CT5.121
Place of Origin: Czech Republic
POWER SUPPLY
AC 380-480V Wide-range Input
Input Fuses Already Included
Requires only Two Legs of a 3-Phase System
Width only 40mm
Efficiency up to 85.8%
Input -Transient Blanking Circuit Included
Minimal Inrush Current Surge
Full Power Between -25°C and +60°C
SHORT-FORM DATA
Output voltage DC 12V Nominal
Adjustment range 12 - 15V Factory setting 12.0V
Output current 8.0 - 6.4A Up to +60°C ambient
6.0 - 4.8A At +70°C ambient
Derate linearly between +60°C and +70°C
Input voltage AC AC 380-480V -15%/+20%
Mains frequency 50-60Hz ±6%
Input current AC 0.64 / 0.56A At 400 / 480Vac
Power factor 0.44 / 0.42 At 400 / 480Vac
AC Inrush current 4 / 4Apk At 400 / 480Vac
Efficiency 85.4 / 85.8% At 400 / 480Vac
Losses 16.4 / 15.9W At 400 / 480Vac
Hold-up time 43 / 63ms At 400 / 480Vac
Temperature range -25°C to +70°C
Size (WxHxD) 40x124x117mm Without DIN rail
Weight 500g
